Barksdale BPS3000 series pressure switch

Tuesday, November 3, 2015

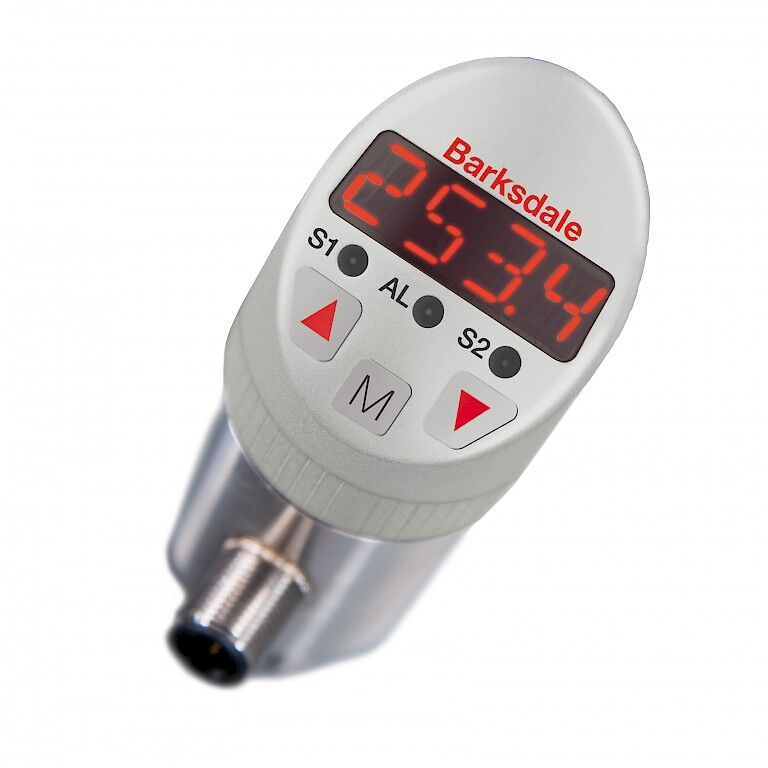

The Barksdale series BPS3000 is an electronic pressure switch which offers an analogue output and up to two switched outputs whilst having a local display to view the process pressure.

The BPS3000 is available in gauge pressure ranges up to 620 bar or absolute pressures up to 150 PSIA.

IP ratings are available for up to IP67, making the pressure switch ideal for both indoor and outdoor installations and processes.

The Barksdale pressure switch is available with either a single or dual switched output with both normally open and normally closed output. The pressure switch will also act as a pressure transmitter with either 4 – 20 mA or 0 – 10 VDC analogue output signals available.

Many process connections are also available, including ¼” BSP threaded or a ½” BSP flush diaphragm seal, UNF and NPT connections may also be selected.

The BPS3000 offers a 0.5% of full scale linearity error whilst offering 0.1% of FSO repeatability.

The Barksdale pressure switch can be used across many industries including factory automation, hydraulic and lubrication, pumps and compressors, injection moulding and the machine tool industry.

Related article

HydraPro Flow Pressure Test Kit

Get in touch

If you have a specific application requiring an electronic pressure switch contact us to speak to an application engineer today. Talk to us about approvals for the BPS3000 as many are available!

Posted by James Kybird, Managing Director
